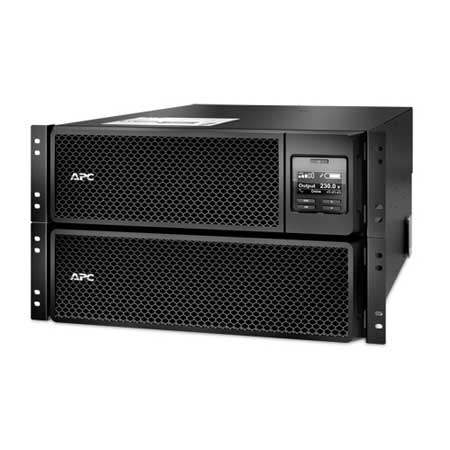

BỘ LƯU ĐIỆN  APC SRT8KRMXLI

• Output power capacity:8.0 KWatts / 8.0 kVA

• Max Configurable Power (Watts):8.0 KWatts / 8.0 kVA

• Nominal Output Voltage:230V

• Output Voltage Distortion:Less than 2%

• Output Frequency (sync to mains):50/60Hz +/- 3 Hz

• Other Output Voltages:220, 240

• Load Crest Factor:3 : 1

• Topology:Double Conversion Online

• Waveform type:Sine wave

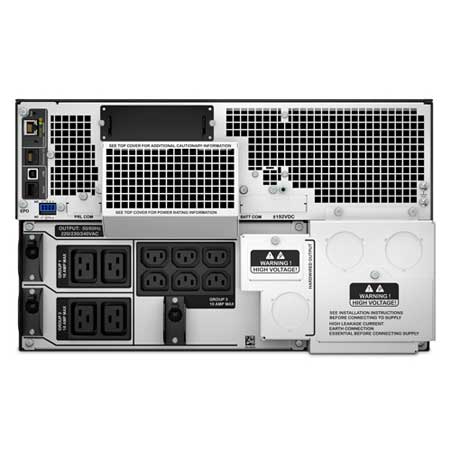

• Output Connections

  (4) IEC 320 C19 (Battery Backup)

  (6) IEC 320 C13 (Battery Backup)

  (1) Hard Wire 3-wire (H N + G) (Battery Backup)

  (3) IEC Jumpers (Battery Backup)

• Bypass:Internal Bypass (Automatic and Manual)

Input

• Nominal Input Voltage:230V , 400V 3PH

• Input frequency:40 - 70 Hz (auto sensing)

• Input Connections:Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)

• Input voltage range for main operations:160 - 275V

• Input voltage adjustable range for mains operation:100 - 275 (half load), 173 - 476 (half load)V

• Other Input Voltages:220, 240, 380, 415

Batteries & Runtime

• Battery type:Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

• Typical recharge time:1.5hour(s)

• Replacement Battery:APCRBC140

• Expected Battery Life (years):3 - 5

• RBC Quantity:2

• Extendable Run Time:1

• Battery Volt-Amp-Hour Capacity:1728

• Extended Run Options:APC-Smart-UPS-SRT-8000VA-RM-230V

• Runtime:View Runtime Graph

  View Runtime Chart

• Efficiency:View Efficiency Graph

Communications & Management

• Interface Port(s):RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB

• Control panel:Multi-function LCD status and control console

• Audible Alarm:Audible and visible alarms prioritized by severity

• Emergency Power Off (EPO):Yes

• Available SmartSlot™ Interface Quantity:1

Surge Protection and Filtering

• Surge energy rating:480Joules

Physical

• Maximum Height:263mm , 26.3cm

• Maximum Width:432mm , 43.2cm

• Maximum Depth:715mm , 71.5cm

• Rack Height:6U
