BỘ LƯU ĐIỆN UPS APC SRT5KRMXLI 5000VA Rackmount

Bộ lưu điện APC SRT5KRMXL

• Output power capacity:2.7 KWatts / 3.0 kVA

• Max Configurable Power (Watts):2.7 KWatts / 3.0 kVA

• Nominal Output Voltage:230V

• Output Voltage Note:Configurable for 220 : 230 or 240 nominal output voltage

• Output Voltage Distortion:Less than 2%

• Output Frequency (sync to mains):50/60Hz +/- 3 Hz

• Other Output Voltages:220, 240

• Load Crest Factor:3 : 1

• Topology:Double Conversion Online

• Waveform type:Sine wave

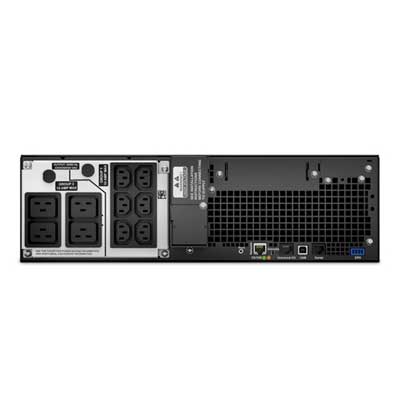

• Output Connections

  (2) IEC 320 C19 (Battery Backup)

  (8) IEC 320 C13 (Battery Backup)

  (2) IEC Jumpers (Battery Backup)

• Bypass:Internal Bypass (Automatic and Manual)

Input

• Nominal Input Voltage:230V

• Input frequency:40 - 70 Hz (auto sensing)

• Input Connections:British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P

• Cord Length:2.44meters

• Input voltage range for main operations:160 - 275V

• Input voltage adjustable range for mains operation:100 - 275 (half load)V

• Number of Power Cords:1

• Other Input Voltages:220, 240

Batteries & Runtime

• Battery type:Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

• Included Battery Modules:1

• Typical recharge time:3hour(s)

• Nominal Battery Voltage:96V

• Replacement Battery:APCRBC152

• Expected Battery Life (years):3 - 5

• RBC Quantity:1

• Extendable Run Time:1

• Battery Volt-Amp-Hour Capacity:505

• Extended Run Options:APC-Smart-UPS-SRT-3000VA-RM-230V

• Runtime:

  View Runtime Graph

  View Runtime Chart

• Efficiency:View Efficiency Graph

Communications & Management

• Interface Port(s):RJ-45 Serial , Smart-Slot , USB

• Control panel:Multi-function LCD status and control console

• Audible Alarm:Audible and visible alarms prioritized by severity

• Emergency Power Off (EPO):Yes

• Available SmartSlot™ Interface Quantity:1

Surge Protection and Filtering

• Surge energy rating:340Joules

• Filtering:--

Physical

• Maximum Height:85mm , 8.5cm

• Maximum Width:432mm , 43.2cm

• Maximum Depth:635mm , 63.5cm

• Rack Height:2U

• Net Weight:31.3kg

• Shipping weight:39.92kg

• Shipping Height:246mm , 24.6cm

• Shipping Width:599mm , 59.9cm

• Shipping Depth:871mm , 87.1cm

• Color:Black

• Units per Pallet:6.0

Environmental

• Operating Environment:0 - 40 °C

• Operating Relative Humidity:0 - 95% non-condensing %

• Operating Elevation:0-3000meters

• Storage Temperature:-15 - 45 °C

• Storage Relative Humidity:0 - 95% non-condensing %

• Storage Elevation:0-15000meters

• Audible noise at 1 meter from surface of unit:55.0dBA

• Online thermal dissipation:703.0BTU/hr

• Protection Class:IP 20

Conformance

• Approvals:CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR (EU), RCM, VDE

• Standard warranty:3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

• RoHS:Compliant

• REACH:REACH: Contains No SVHCs

• Battery Directive:Compliant

• Battery Notes:ts_Battery_Notes
