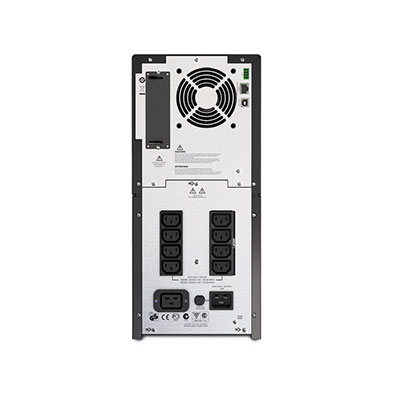

BỘ LƯU ĐIỆN APC SMT3000I

• Output power capacity:2700Watts / 3.0 kVA

• Max Configurable Power (Watts):2700Watts / 3.0 kVA

• Nominal Output Voltage:230V

• Output Voltage Note:Configurable for 220 : 230 or 240 nominal output voltage

• Output Voltage Distortion:Less than 5% at full load

• Output Frequency (sync to mains):47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal

• Other Output Voltages:220, 240

• Topology:Line Interactive

• Waveform type:Sine wave

• Output Connections

  (8) IEC 320 C13 (Battery Backup)

  (2) IEC Jumpers (Battery Backup)

Input

• Nominal Input Voltage:230V

• Input frequency:50/60 Hz +/- 3 Hz (auto sensing)

• Input Connections:IEC-320 C14

• Input voltage range for main operations:160 - 286V

• Input voltage adjustable range for mains operation:151 - 302V

• Other Input Voltages:220, 240

Batteries & Runtime

• Battery type:Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

• Typical recharge time:3hour(s)

• Replacement Battery:RBC6

• Expected Battery Life (years):3 - 5

• RBC Quantity:1

• Battery Volt-Amp-Hour Capacity:264

• Runtime

  View Runtime Graph

  View Runtime Chart

• Efficiency:View Efficiency Graph

Communications & Management

• Interface Port(s):SmartSlot , USB

• Control panel:Multi-function LCD status and control console

• Audible Alarm:Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm:Emergency Power Off (EPO)

• Optional

• Available SmartSlot™ Interface Quantity:1

Surge Protection and Filtering

• Surge energy rating:459Joules

• Filtering:Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Maximum Height:219mm , 21.9cm

• Maximum Width:171mm , 17.1cm

• Maximum Depth:439mm , 43.9cm

• Net Weight:18.86kg

• Shipping weight:22.77kg

• Shipping Height:376mm , 37.6cm

• Shipping Width:328mm , 32.8cm

• Shipping Depth:595mm , 59.5cm

• Color:Black

• Units per Pallet:12.0

Environmental

• Operating Environment:0 - 40 °C

• Operating Relative Humidity:0 - 95 %

• Operating Elevation:0-3000meters

• Storage Temperature:-15 - 45 °C

• Storage Relative Humidity:0 - 95 %

• Storage Elevation:0-15000meters

• Audible noise at 1 meter from surface of unit:41.0dBA

• Online thermal dissipation:100.0BTU/hr

Conformance

• Approvals:CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR (EU), RCM, UL 1778, VDE

• Standard warranty:3 years repair or replace (excluding battery) and 2 year for battery

Sustainable Offer Status

• RoHS:Compliant

• REACH

  REACH: Contains No SVHCs

• PEP:Available in Documentation tab

• EOLI:Available in Documentation tab

• Other Environmental Compliance:China RoHS
