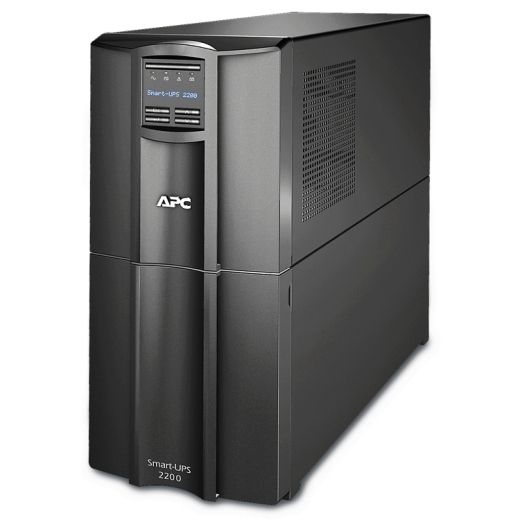

Bộ lưu điện APC SMT2200IC

Bộ lưu điện APC SMT2200IC

Output

Max Configurable Power (Watts):1.98kWatts / 2.2kVA

Output Voltage Note:Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion:Less than 5%

Output Frequency (sync to mains):0/60Hz +/- 3 Hz

Other Output Voltages:220, 240

Topology:Line Interactive

Waveform type:Sine wave

Transfer Time :6ms typical : 10ms maximum

Input

Input frequency:50/60 Hz +/- 3 Hz (auto sensing)

Input voltage range for main operations:160 - 286V

Input voltage adjustable range for mains operation:151 - 302V

Number of Power Cords:1

Other Input Voltages:20, 240

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time:3hour(s)

Replacement Battery:RBC55

Expected Battery Life (years):3 - 5

RBC Quantity:1

Battery Charge Power (Watts):260Watts

Battery Volt-Amp-Hour Capacity:783

Runtime

View Runtime Graph

View Runtime Chart

Communications & Management

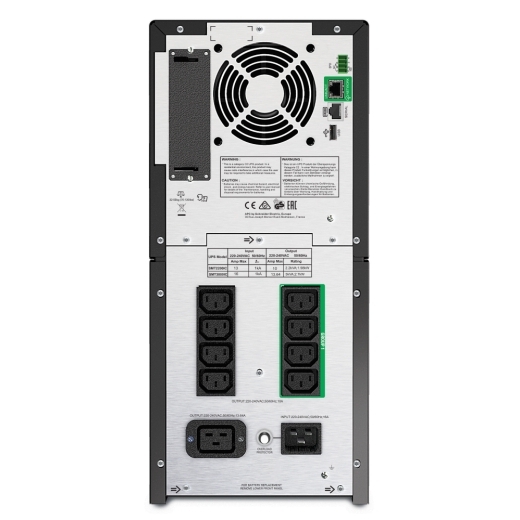

Interface Port(s):RJ-45 Serial, SmartSlot, USB

Control panel:Multi-function LCD status and control console

Audible Alarm:Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO):Yes

Available SmartSlot™ Interface Quantity:

Surge Protection and Filtering:Surge energy rating

365Joules

Filtering:Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height:435MM, 43.5CM

Maximum Width:197MM, 19.7CM

Maximum Depth:544MM, 54.4CM

Net Weight:50.2KG

Shipping weight:61.9KG

Shipping Height:699MM, 69.9CM

Shipping Width:381MM, 38.1CM

Shipping Depth:762MM, 76.2CM

Color:Black

Units per Pallet:9.0

Environmental

Operating Temperature:0 - 40 °C

Operating Relative Humidity:0 - 95 %

Operating Elevation:0-3000meters

Storage Temperature:-15 - 45 °C

Storage Relative Humidity:0 - 95 %

Storage Elevation:0-15000meters

Audible noise at 1 meter from surface of unit:45.0dBA

Online thermal dissipation:275.0BTU/hr

Conformance

Approvals:CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE

Standard warranty:3 years repair or replace (excluding battery) and 2 year for battery, optional on-site warranties available, optional extended warranties available

Sustainable Offer Status

RoHS:Compliant

REACH

REACH: Contains SVHCs
