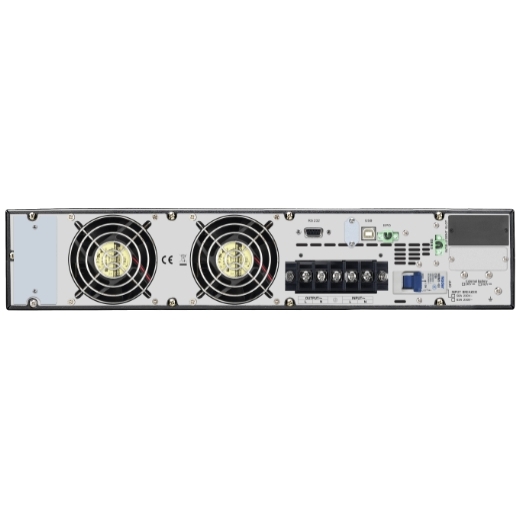

Bộ lưu điện APC EASY SRV10KRIRK

Bộ lưu điện APC EASY SRV10KRIRK

Output

Max Configurable Power (Watts) :10.0kWatts / 10.0kVA

Efficiency at Full Load:94.0 %

Output Frequency (sync to mains):50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages:220, 240

Load Crest Factor:3 : 1

Topology :Double conversion online

Waveform type:Sine wave

Bypass:Internal bypass (automatic and manual)

Input

Input frequency:40 - 70 Hz

Input voltage range for main operations:110 - 300 Adjustable (half load), 176 - 300V

Efficiency at Full Load:94.0 %

Other Input Voltages:220, 240

Batteries & Runtime

Battery type :Lead-acid battery

Typical recharge time:3hour(s)

Battery Charge Power (Watts):531 Watts

Runtime

View Runtime Graph

View Runtime Chart

Communications & Management

Interface Port(s):DB-9 RS-232, Intelligent Smart Slot, USB

Control panel:Multifunction LCD status and control console

Audible Alarm:Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO):Yes

Available SmartSlot™ Interface Quantity:1

Surge Protection and Filtering

Surge energy rating:600Joules

Physical

Maximum Height:6.81inches (173MM, 17.3CM)

Maximum Width:17.24inches (438MM, 43.8CM)

Maximum Depth:24.21inches (615MM, 61.5CM)

Net Weight:149.91lbs. (68.0KG)

Shipping weight:174.16lbs. (79.0KG)

Shipping Height:19.09inches (485MM, 48.5CM)

Shipping Width:23.62inches (600MM, 60.0CM)

Shipping Depth:32.91inches (836MM, 83.6CM)

Color:Black

Environmental

Operating Temperature:32 - 104 °F (0 - 40 °C)

Operating Relative Humidity:0 - 95 (Non-condensing) %

Operating Elevation:0 - 10000ft (0 - 3048meters)

Storage Temperature:-15 - 60 °C

Storage Elevation:0 - 50000ft (0 - 15240meters)

Audible noise at 1 meter from surface of unit:58.0dBA

Protection Class:IP20

Conformance

Approvals:CE, IEC 62040-1-1, IEC 62040-1-2

Standard warranty:2 years repair or replace

Sustainable Offer Status

RoHS:Compliant
