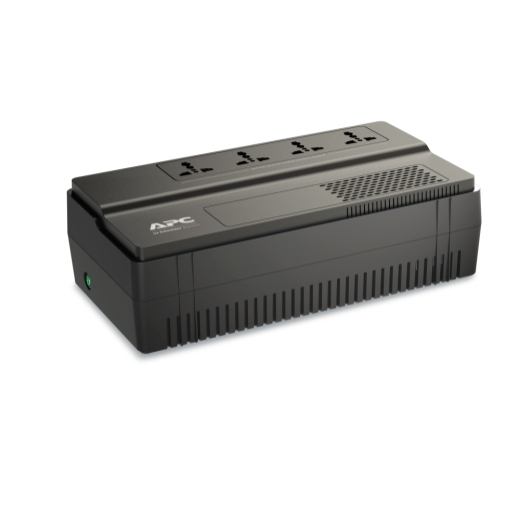

Bộ lưu điện APC EASY BV500I-MS

Output

Max Configurable Power (Watts):300 Watts / 500VA

Output Frequency (sync to mains):50/60 Hz +/- 1 Hz Unsynchronised

Topology:Line interactive

Waveform type:Stepped approximation to a sinewave

Transfer Time:6 ms typical : 10 ms maximum

Input

Input frequency:50/60 Hz +/- 5 Hz Auto-sensing

Input voltage range for main operations:170 - 280V

Number of Power Cords:1

Batteries & Runtime

Battery type:Lead-acid battery

Typical recharge time:8hour(s)

Expected Battery Life (years):3 - 5

Efficiency:View Efficiency Graph

Communications & Management

Control panel:LED Status display with on line : on battery

Audible Alarm:Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating:156Joules

Physical

Maximum Height:3.6inches (93MM, 9.25CM)

Maximum Width:6.3inches (161MM, 16.05CM)

Maximum Depth:12.0inches (305MM, 30.5CM)

Net Weight8.6lbs. (3.9KG)

Shipping weight:9.26lbs. (4.2KG)

Shipping Height:9.3inches (237MM, 23.7CM)

Shipping Width:5.6inches (143MM, 14.3CM)

Shipping Depth:14.7inches (373MM, 37.3CM)

Color Black

SCC Codes 10731304338298

Environmental

Operating Temperature 32 - 104 °F (0 - 40 °C)

Operating Relative Humidity 0 - 90 %

Operating Elevation 0 - 6667ft (0 - 2032.1meters)

Storage Temperature -20 - 50 °C

Storage Elevation 0 - 50000ft (0 - 15240meters)

Audible noise at 1 meter from surface of unitn 40.0dBA

Protection Class IP20

Conformance

Approvals CE

Standard warranty 2 years repair or replace
