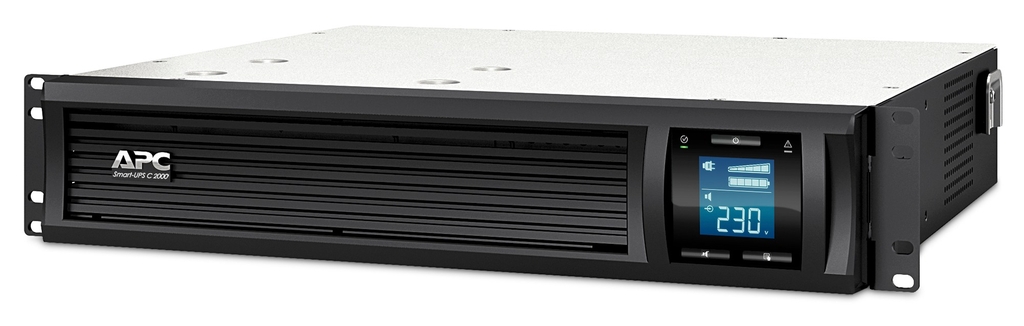

Bộ lưu điện  APC SMC2000I-2U

Output

• Output power capacity:1.3 KWatts / 2.0 kVA

• Max Configurable Power (Watts):1.3 KWatts / 2.0 kVA

• Nominal Output Voltage:230V

• Output Voltage Distortion:Less than 5%

• Output Frequency (sync to mains):50 Hz

• Topology:Line Interactive

• Waveform type:Sine wave

• Output Connections

  (6) IEC 320 C13 (Battery Backup)

  (2) IEC Jumpers (Battery Backup)

• Transfer Time:8ms typical : 10 ms maximum

Input

• Nominal Input Voltage:230V

• Input frequency:50/60 Hz +/- 3 Hz (auto sensing)

• Input Connections:IEC-320 C20

• Input voltage range for main operations:180 - 287V

• Number of Power Cords:1

Batteries & Runtime

• Battery type:Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

• Typical recharge time:3hour(s)

• Replacement Battery:APCRBC133

• Expected Battery Life (years):3 - 5

• RBC Quantity:1

• Battery Volt-Amp-Hour Capacity:432

• Runtime:View Runtime Graph

  View Runtime Chart

Communications & Management

• Interface Port(s):USB

• Control panel:Multi-function LCD status and control console

• Audible Alarm:Alarm when on battery : distinctive low battery alarm : configurable delays

• Emergency Power Off (EPO):--

Surge Protection and Filtering

• Surge energy rating:300Joules

• Filtering:Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449Physical

• Maximum Height:89mm , 8.9cm

• Maximum Width:480mm , 48.0cm

• Maximum Depth:470mm , 47.0cm

• Rack Height:2U

• Net Weight:26.2kg

• Shipping weight:30.16kg

• Shipping Height:250mm , 25.0cm

• Shipping Width:590mm , 59.0cm

• Shipping Depth:600mm , 60.0cm

• Color:Black

• Units per Pallet:16.0

Environmental

• Operating Environment:0 - 40 °C

• Operating Relative Humidity:0 - 95 %

• Operating Elevation:0-3000meters

• Storage Temperature:-15 - 45 °C

• Storage Relative Humidity:0 - 95 %

• Storage Elevation:0-15000meters

• Audible noise at 1 meter from surface of unit:42.0dBA

• Online thermal dissipation:81.0BTU/hr

Conformance

• Approvals:C-tick, CE, EAC, GOST, GS Mark, IRAM, SABS, VDE

• Equipment protection policy:Lifetime : $150000

• Standard warranty:2 years repair or replace

Sustainable Offer Status

• RoHS:Compliant

• REACH:REACH: Contains No SVHCs
